You are here: Home » Products » Fuel Dispenser » Hipech H4 Fuel Dispenser with 4 Nozzles 2 Products

Hipech H4 Fuel Dispenser with 4 Nozzles 2 Products

Hipech H4 Fuel Dispenser with 4 Nozzles 2 Products
1.-4 display screens
2.-Pump:Submersible pump (No pump)Gear pump、Combined pump as option
3.-3/4 Nozzle*4
4.-3/4 black hose with 4.5M*4-4 plastic nozzle holders
5.-Breakaway couplings
6.-7-bit counter
7.-ESD device
8.-Emergency stop switch
9.-Flow Meter:Supertech flowmeter
10.-Package:Standard export carton
11.-Packing Size:1350*760*2540
12.-Gross Weight347Kg

Model:
H4 fuel dispenser
Brand:
hmhipech

Quantity:
Availability:





Inquire Add to Basket

H4 Fuel Dispenser

Shandong Hipech intemational Trade Company Limed belong8 toRizhao Huming Machinery Compeny Limhed, founded in 2008. isan indus,rial and trade integration of scentifc and technoicgikcal innosatian company.
Dur faciony also has a protassional production lne, a complete gelof high s*andards spraying and sheet metal manutacturing aqulpmcnt, and the core parts of the machine are also dcveloped andmanufaciured by our oan company , to ensure the product qualityof the maehine,and improve the produclion emcienay.
Sirhing for perection is the elernal pursut of Hipech, we will always strive to proide customers with high-qualty producis and best senice to achieve the win.sin cocperafon.

Product Video

Current Leak Protection

First-rate >
Leakage Ground

First-rate >
Over Current Protection

First-rate >
Over Temperature Protection

First-rate >

Lightning Protection

First-rate >
Over Voltage Protection

First-rate >
Short Circuit Protection

First-rate >
Voltage Fluctuation Protection

First-rate >

Speed

product lineup consists of a number of variations to meet the requirements of both sites and customers.The dispenser is highly customizable, from the width of the body, suction, flow rate, number of products and many more.

H4 Fuel Dispenser

Use multiple cards to serve different customer groups.
Complete configuration, thoughtful service, emergency stop, electro-static discharge, hose balancer, hose hook and other functions areavailable.
Simple appearance and detailed structure.
Neat and uniform metal wiring, clearly marked, easy to maintain.
The payment operation is fast and convenient, with optional handheldPOS machine, which can swipe UnionPay cards, credit cards, and lCcards. Multimedia payment methods support WeChat, Alipay. facepayment.
Thick galvanized sheet shel, strong and rust-proof, more durable.
Equipped with a 15-inch multimedia screen.
Symmetrical struclure, standardized design, double nozzles and fourdisplay uniform size.

Gear Pump

Gear pump and combined pump belong to the self-suction pump, is installed in the fuel dispenser inside, need motor drive to make it work.

Combined Pump

Gear pump and combined pump belong to the self-suction pump, is installed in the fuel dispenser inside, need motor drive to make it work.

Submersible Pump

Submersible pump is directly placed in the oil tank, there is no pump in the fuel dispenser, when the fuel dispenser starts to work, the submersible pump will be extracted in the oil tank to complete the work.

Application Scenario

About Us

Hipech H4 Fuel Dispenser with 4 Nozzles 2 Products H4 Fuel Dispenser with 4 Nozzles 2 Products Fuel Dispenser with 4 Nozzles 2 Products Fuel Dispenser with 4 Nozzles H4 Fuel Dispenser

Related Products

H8 Fuel Dispenser with 4 Nozzles 2 Products

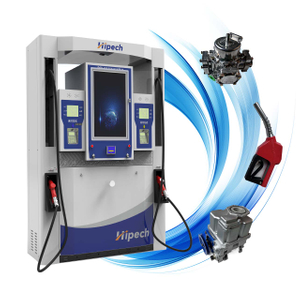

Good Price H6 Fuel Dispenser with 4 Nozzles 2 Products

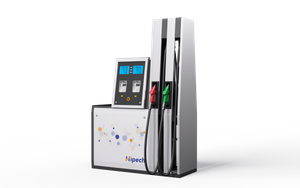

Hipech H7 Fuel Dispenser with 4 Nozzles 2 Products
