You are here: Home » Products » Fuel Dispenser » H2 Fuel Dispenser with 2 Nozzies 2 Producls

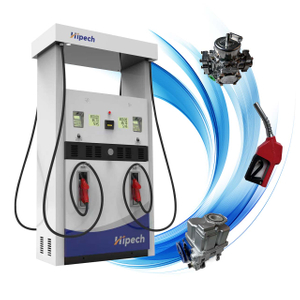

H2 Fuel Dispenser with 2 Nozzies 2 Producls

Hipech H2 Fuel Dispenser with 2 Nozzies 2 Producls
1.-4 display screens
2.-Pump:Submersible pump (No pump)Gear pump、Combined pump as option
3.-314 Nozzle'2
4.-3/4 black hose with 4.5M*2
5.-2 aluminum nozzle holders.
6.-Breakaway couplings
7.-7-bit counter
8.-ESD device
9.-Emergency stop switch
10.-Flow Meter:Supertech flowmeter
11.-Package:Standard export carton
12.-Packing Size:560*1020*2230
13.Gross Weight168Kg
  • H2 fuel dispenser

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


H2 Fuel Dispenser


Shandong Hipech intemational Trade Company Limed belong8 toRizhao Huming Machinery Compeny Limhed, founded in 2008. isan indus,rial and trade integration of scentifc and technoicgikcal innosatian company.
Dur faciony also has a protassional production lne, a complete gelof high s*andards spraying and sheet metal manutacturing aqulpmcnt, and the core parts of the machine are also dcveloped andmanufaciured by our oan company , to ensure the product qualityof the maehine,and improve the produclion emcienay.
Sirhing for perection is the elernal pursut of Hipech, we will always strive to proide customers with high-qualty producis and best senice to achieve the win.sin cocperafon.

Product Video
Speed

product lineup consists of a number of variations to meet the requirements of both sites and customers.The dispenser is highly customizable, from the width of the body, suction, flow rate, number of products and many more.
H1 Fuel Dispenser

Simple appearance and detailed structure.
Complete configuration, thoughtful service, emergencystop,electrostatic discharge, hose balancer, hose hookand other functions are available.
Economical and practical, simple and easy to use.
Can be converted to a wide range of models.
Thick galvanized sheet shell, strong and rust-proof, moredurable.
Gear Pump

Gear pump and combined pump belong to the self-suction pump, is installed in the fuel dispenser inside, need motor drive to make it work.

Combined Pump
Gear pump and combined pump belong to the self-suction pump, is installed in the fuel dispenser inside, need motor drive to make it work.
Submersible Pump
Submersible pump is directly placed in the oil tank, there is no pump in the fuel dispenser, when the fuel dispenser starts to work, the submersible pump will be extracted in the oil tank to complete the work.


Application Scenario



About Us



Item

Technical parameter

Ambient temperature

-25℃~+55℃

Humidity

≤95%

Flow meter type

optional

Flow meter accuracy

≤0.3%

Motor power capacity

1HP(0.75kw)

Nozzle

auto shut-off

Repeating tolerance

≤0.15%

Suction distance

6m

Inlet pressure

≥54kpa

Outlet pressure

≤0.3Mpa

Voltage

220v/380v

Noise

≤80dB

Control type

solenoid valve control

Pump flowrate

55±5

Max flow

80L/min


For any additional inqueries feel free to write us at :
